Introduction
Computer-Aided Manufacturing (CAM) software plays a central role in modern manufacturing by bridging the gap between digital design and physical production. Whether producing aerospace components, automotive parts, medical devices, or custom prototypes, CAM systems ensure that ideas modeled in CAD software can be transformed into precise, repeatable, and efficient manufacturing instructions. Understanding how CAM software works – from initial design to final production – helps manufacturers optimize workflows, reduce errors, and enhance product quality. Below is a detailed look at the entire process and the technologies that make it possible.
Definition
CAM (Computer-Aided Manufacturing) software is a type of application that uses digital models to plan, control, and automate manufacturing processes. It translates 3D designs or CAD files into precise machine instructions – such as toolpaths for CNC machines – to streamline production, improve accuracy, reduce manual effort, and ensure consistent, high-quality results in machining and fabrication.
From Idea to Digital Model: The Role of CAD
The CAM workflow begins with a digital model created in CAD (Computer-Aided Design) software. CAD tools allow engineers and designers to build 2D drawings or 3D models with exact dimensions, tolerances, and geometric details. These models serve as the blueprint for all downstream manufacturing operations.
CAD is essential because:
- It defines geometry precisely. Every hole, surface, radius, and cut must be represented accurately so CAM software can interpret it.
- It stores engineering intent. Features like threads, chamfers, and fillets aren’t just shapes – they contain metadata that CAM can read.
- It supports revisions. Designs often go through multiple iterations before production. CAD’s parametric capabilities let engineers adjust features quickly without rebuilding the model.
Typical CAD formats compatible with CAM include STEP, IGES, Parasolid, STL, and native formats like SolidWorks or Autodesk Inventor files. Once the design is finalized, the model is exported or directly transferred to CAM software.
Importing the Model into CAM Software
When a CAD model enters CAM software, the system analyzes the geometry and prepares it for machining or other manufacturing processes. The CAM environment displays the model in a 3D workspace and allows users to define essential production parameters:
- Stock material: The size, shape, and type of raw material (e.g., block, cylinder, additive preform).
- Machine type: Milling machine, lathe, router, EDM machine, or multi-axis CNC.
- Tool libraries: Predefined cutting tools, inserts, drills, end mills, and custom cutters.
- Coordinate system: Establishing the work origin (zero point) is crucial for accurate machining.
This setup phase is vital because the CAM software must understand how the digital geometry relates to the physical production environment.
Toolpath Generation: The Heart of CAM
The most important function of CAM software is generating toolpaths—the precise paths that cutting tools will follow to manufacture the part. Toolpath creation is where engineering expertise and automation converge.
CAM systems generate several types of toolpaths:
Roughing Toolpaths:
Roughing removes the majority of material quickly using high feed rates and large tools. Strategies include:
- Adaptive clearing
- High-speed machining (HSM)
- Pocketing and facing operations
These toolpaths prioritize material removal rate while avoiding excessive tool wear.
Semi-Finishing Toolpaths:
Used after roughing, these toolpaths refine the part’s geometry and prepare it for a final surface finish. Smaller tools and moderate feed rates improve accuracy.
Finishing Toolpaths:
Finishing operations create the final surface quality of the part. CAM may generate:
- Contour or profile cuts
- Pencil machining for fillets
- Surface finishing strategies for complex 3D shapes
Finishing toolpaths must be extremely precise because they determine the ultimate dimensional accuracy.
Drilling and Hole-Making Cycles:
CAM software automates repetitive tasks like:
- Drilling
- Tapping
- Boring
- Reaming
These cycles are standardized, making programming faster.
Multi-Axis Toolpaths:
Advanced CAM platforms support 4-axis and 5-axis machining, allowing the tool to approach the workpiece from multiple angles. This enables machining of complex shapes found in aerospace blades, molds, and medical implants.
Multi-axis toolpaths reduce setup changes and improve accuracy, but they require advanced simulation and collision detection.
Toolpath Optimization and Cutting Parameters
Once toolpaths are created, CAM software helps optimize:
- Feed rates: How fast the tool moves through the material.
- Spindle speeds: How fast the tool rotates.
- Stepovers and stepdowns: How much material is removed per pass.
- Tool engagement: Ensuring the cutter remains within safe cutting conditions.
These parameters significantly impact cycle times, tool life, and part quality. Modern CAM systems often use machining databases and AI-driven suggestions to recommend optimal cutting conditions based on material type and tool geometry.
Simulation and Verification
Before sending instructions to a machine, CAM software conducts a virtual simulation of the machining process. This step is crucial for detecting errors that could cause expensive production failures.
Simulation capabilities include:
- Material removal simulation: Shows how the stock is cut layer by layer.
- Collision detection: Ensures the tool, holder, or machine head doesn’t hit fixtures or the part.
- Tool deflection analysis: Predicts bending or flexing of long tools during cutting.
- Machine kinematics simulation: Models the actual machine axes, rotary movements, and limitations.
Simulation helps verify that the program is safe, efficient, and accurate—especially important when machining costly materials like titanium or Inconel.
Post-Processing: Converting Toolpaths to Machine Code
CAM toolpaths must be translated into a language CNC machines understand, typically G-code or M-code. This translation is done by a post-processor, which is customized for each machine’s controller (e.g., FANUC, Haas, Siemens, Mazak).
The post-processor outputs specific instructions such as:
- G01 linear interpolation commands
- G02/G03 arc movements
- Spindle speed commands (S-codes)
- Tool changes (T-codes)
- Coolant control (M-codes)
- Machine homing and safety moves
A good post-processor ensures that the CAM output matches the machine’s capabilities exactly.
Sending the Program to the CNC Machine
The final step is transferring the G-code file to the CNC machine via:
- USB drive
- Network interface (Ethernet)
- DNC communication
- Cloud-based systems
The machinist then loads the program, mounts the stock, installs the tools, and performs a dry run or air cut to validate the program. Once everything is confirmed, real machining begins.
Continuous Feedback and Optimization
Modern CAM workflows often incorporate:
- Real-time machine monitoring
- Tool wear sensors
- Adaptive control systems
- Digital twins
These systems provide continuous feedback that helps programmers refine toolpaths and improve future production cycles.
Growth Rate of CAM Software Market

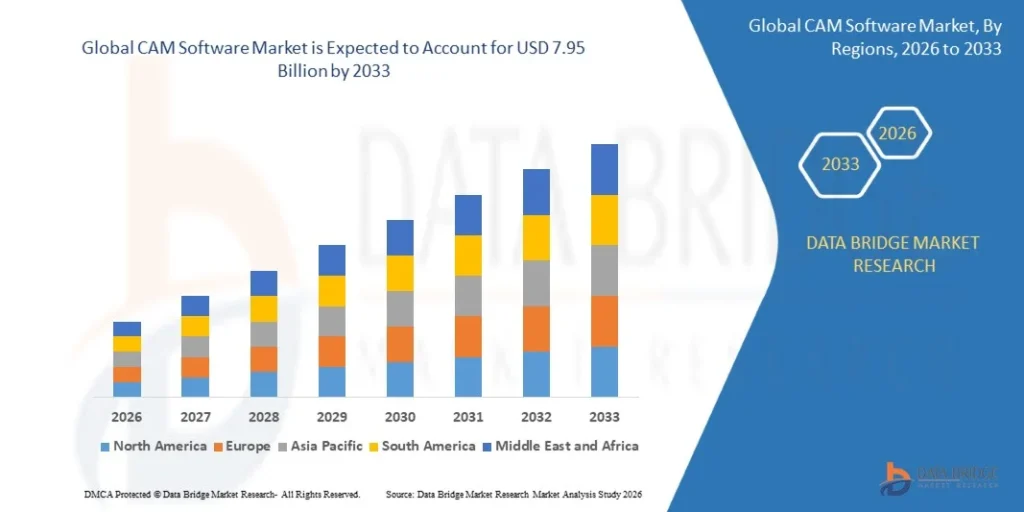

According to Data Bridge Market Research, the CAM Software market was estimated to be worth USD 3.92 billion in 2025 and is projected to grow at a compound annual growth rate (CAGR) of 9.25% to reach USD 7.95 billion by 2033.
Learn More: https://www.databridgemarketresearch.com/reports/global-cam-software-market
Conclusion
CAM software is essential to transforming digital designs into real-world products with speed, accuracy, and repeatability. From importing CAD models and generating intelligent toolpaths to simulating machining operations and producing machine-ready G-code, CAM acts as the digital engine of modern manufacturing. Understanding how CAM software works – step by step – empowers manufacturers to reduce waste, increase precision, and fully harness the capabilities of today’s advanced CNC machinery.
